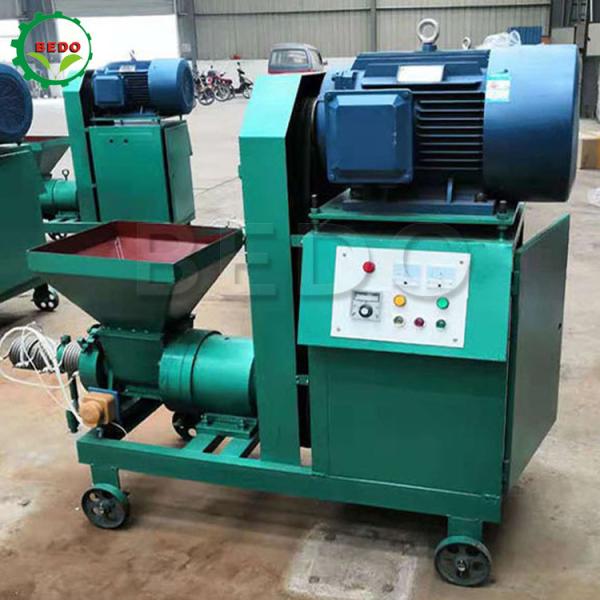

Product Description:
Fully Automatic Biomass charcoal retort briket machine line for raw
coconut charcoal shows the features of high capacity, low energy
consumption, compact and durable.
Many performance data such as capacity, wood briquettes density,
electricity consumption and wearable degree has reached advanced
level.
Fully Automatic Biomass charcoal retort briket machine line for raw
coconut charcoal can be used as charcoal powder briquette machine
by replacement of some spare parts.
The machine adopts good quality carbon steel, the service life over
10 years.
After the processing of High temperature, purification, smoke
removing, the carbonizing equipment transforms the semi-finished
bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning
carbon.
Raw Materials:
( Size: 0-5mm Moisture Content: 8%-12% )
1. Besides the material size must less than 5mm, the humidity of
the raw materials is controlled in 8-12%.
2. Too wet or too dry will cause a bad forming effect.
3. If the material too big, we will recommend you crusher according
to your requirement.
4. If your material moisture over 12%, we have a sawdust drying
machine. After crushing, the material was delivered to the drying
machine, then it was sent to forming machine.
5. If you unsure material is ok, please send it to us, we will
offer a free test service for you.
Final Products:
1. The available shape: cylindrical, square, hexagonal, hollow
quadrangular, pentagon, pentagon with edge, hexagon with edge.
2. The available diameter could be: 50mm,60mm,70mm,80mm with 15-20
mm hole in it and so on.
3. The sawdust produces free radicals, bifunctional under the hot
and high pressure condition of the cow dung briquettes making
machine.
4. The sawdust can be combined each other closely through a
covalent bond.once formed, the combination will remain stable in
case there is no external damage, more stable after cooling.
5. It can be used as fuel, boiler heating, cooking, and other
field.
Especially after carbonized, not only it has long burning time, but
also smokeless, smelless, clean, widely used in barbecue market.
Specific gravity: 1300—1900kg/m3
Calorific value: 4500—5000kcal/kg
Technical Parameters:
| Model | ZBJ50 | ZBJ80 |
| Briquette size | 50mm | 80mm |
| Briquette Density | 0.8-1.4t/m3 | 0.8-1.4t/M3 |
| Material size | 1-5mm | 1-5mm |
| Power | 15kw | 22kw |
| Capacity | 130-150kg/h | 250-280kg/h |
| Weight | 550kg | 710kg |
Applications:
1. Used as bio fuels for boiler
2. For Stove, Home heating
3. Used BBQ charcoal for Barbecue
4. Fuels for Europe country Fireplace etc.

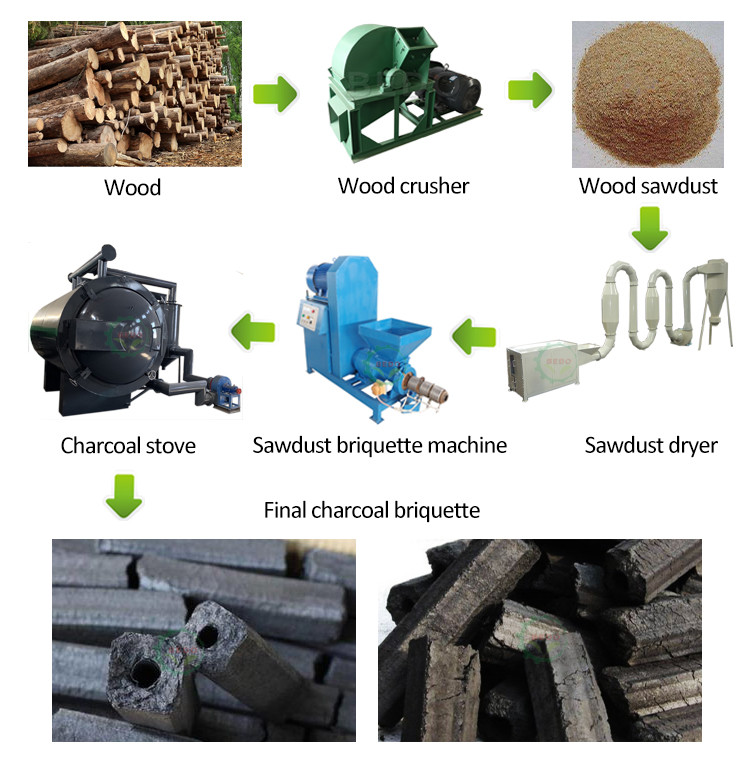

Production Line:
The whole wood briquette production line including: (It can be
customized according to the customers' capacity.)
1. Crusher (Wood Crusher)
Firstly, you shall crush the wood or other biomass material into
sawdust (size: less than 5mm)
2. Dryer (Sawdust Dryer)
Secondly, you shall dry the powdery material until the moisture
content is 8%-12%.
3. Biomass sawdust briquettes making machine
Third, produce different shapes and size of sawdust briquettes by
our wood briquette machine.
4. Carbonization furnace
The forth step: you shall carbonize the sawdust briquette into
charcoal briquettes.
Then you can get the smokeless wood charcoal briquettes.
Support and Services:
Sawdust Briquette Machine Technical Support and Service
At Sawdust Briquette Machine, we aim to provide our customers with
the best technical support and service possible.
When you purchase a sawdust briquette machine from us, you will
receive a detailed user manual. This manual will help you
understand how to operate and maintain your sawdust briquette
machine.
We also provide telephone and email support to assist customers
with their sawdust briquette machine. Our customer service team is
available to answer your questions and provide technical
assistance.
We are committed to providing our customers with quality products
and excellent service. If you have any questions or concerns,
please do not hesitate to contact us.
Packing and Shipping:
Packaging and Shipping
Sawdust briquette machines are usually packaged with plastic films
and then put into wooden cases. The wooden cases are generally used
for transportation and protection of the machines from external
impacts. Delivery of machines is usually done by shipping,
airfreight, railway transportation, or road transportation.
